Premium charging cable | Type 2 | max. 26,6 kW

Code: 1623509 1627692 Choose variant
213 € 220 € from 213 € 257,73 € incl. VAT 266,20 € incl. VAT from 257,73 € incl. VAT
In stock In stock Choose variant
Cable length
Chosen variant is not available. Reset selected parameters.

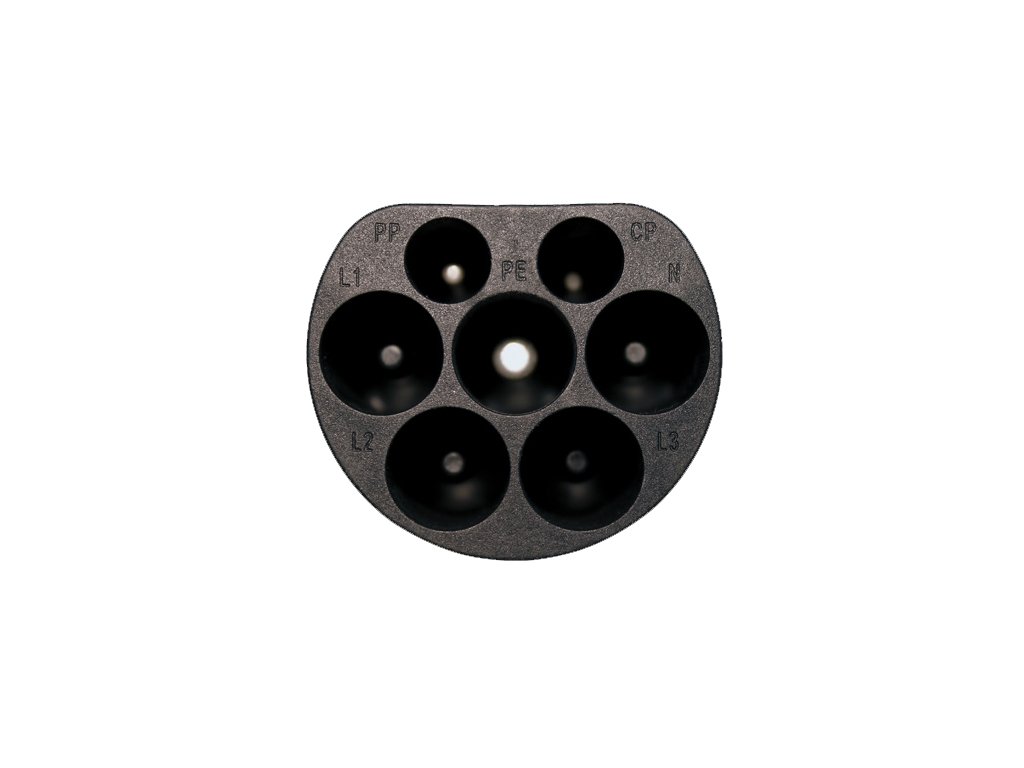

AC charging cable, Mobile AC charging cable with vehicle connector and infrastructure plug, with protective cap, C-Line black / gray, Type 2, IEC 62196-2, 32 A / 480 V (AC), design line C-Line, cable: 4 m, black, straight, mating face: black, handle area: gray

EV-T2G3PC-3AC32A-4,0M6,0ESBK01

EV-T2G3PC-3AC32A-5,0M6,0ESBK01

Detailed information

Product detailed description

Mobile AC charging cable with Vehicle Connector and Infrastructure plug for charging electric vehicles (EV) with alternating current (AC), via type 2 Vehicle Inlets, compatible with type 2 Infrastructure Socket Outlets at charging stations for E-Mobility (EVSE)

EV-T2G3PC-3AC32A-4,0M6,0ESBK01

EV-T2G3PC-3AC32A-5,0M6,0ESBK01

Your advantages

  • Consistent design of all Phoenix Contact Vehicle Connectors and Infrastructure Plugs
  • Silver-plated surface of the power and signal contacts
  • Certified in accordance with IATF 16949:2016 and ISO 9001:2015
  • Material data available in the IMDS (International Material Data System of the automotive industry)
  • Convenient handling, thanks to the ergonomic handle and additional, rubber grip components
  • Tested in accordance with selected tests of automotive standards LV124, LV214, LV215-2
  • Tested in accordance with EV Ready 37 requirements
  • Consistent longitudinal water tightness prevents water ingress in the cable

Additional parameters

Category: Type 2 | 3 phase | max. 32A - 22 kW
Cable length: 4 meters, 5 meters
Cable type: Straight
Charging mode: Mode 3
Power supply: 3 phase
Rated current: 32 A
Operating voltage: 400 V
Rated power: 26,6 kW
Degree of protection: IP44
Cable length: 4/5 meters
Operating temperature: - 30°C ~ + 50°C
Cable: 5x6,0 mm² + 1x0,5 mm²
Connector - Station: Type 2 male
Connector - Car: Type 2 female
Used: Indoor / Outdoor
