Premium coiled charging cable | Type 2 | max. 5 kW

Code: 1627131
215 € 260,15 € incl. VAT
In stock

AC charging cable, Mobile AC charging cable with vehicle connector and infrastructure plug, with protective cap, C-Line black / gray, Type 2, IEC 62196-2, 20 A / 250 V (AC), design line C-Line, cable: 4 m, black, spiraled, mating face: black, handle area: gray

EV-T2G3PC-1AC20A-4,0M2,5EHBK01

Detailed information

Product detailed description

Mobile AC charging cable with Vehicle Connector and Infrastructure plug for charging electric vehicles (EV) with alternating current (AC), via type 2 Vehicle Inlets, compatible with type 2 Infrastructure Socket Outlets at charging stations for E-Mobility (EVSE)

EV-T2G3PC-1AC20A-4,0M2,5EHBK01

Your advantages

  • Consistent design of all Phoenix Contact Vehicle Connectors and Infrastructure Plugs
  • Silver-plated surface of the power and signal contacts
  • Certified in accordance with IATF 16949:2016 and ISO 9001:2015
  • Material data available in the IMDS (International Material Data System of the automotive industry)
  • Convenient handling, thanks to the ergonomic handle and additional, rubber grip components
  • Tested in accordance with selected tests of automotive standards LV124, LV214, LV215-2
  • Tested in accordance with EV Ready 37 requirements
  • Consistent longitudinal water tightness prevents water ingress in the cable

Additional parameters

Category: Type 2 | 1 phase | max. 16A - 3,7 kW
Weight: 3 kg
Cable length: 4 meters
Cable type: Coiled
Charging mode: Mode 3
Power supply: 1 phase
Rated current: 20 A
Operating voltage: 250V AC
Rated power: 5 kW
Degree of protection: IP44
Cable length: 4 meters
Operating temperature: - 30°C ~ + 50°C
Cable: 3x2,50mm² + 1x0,5mm²

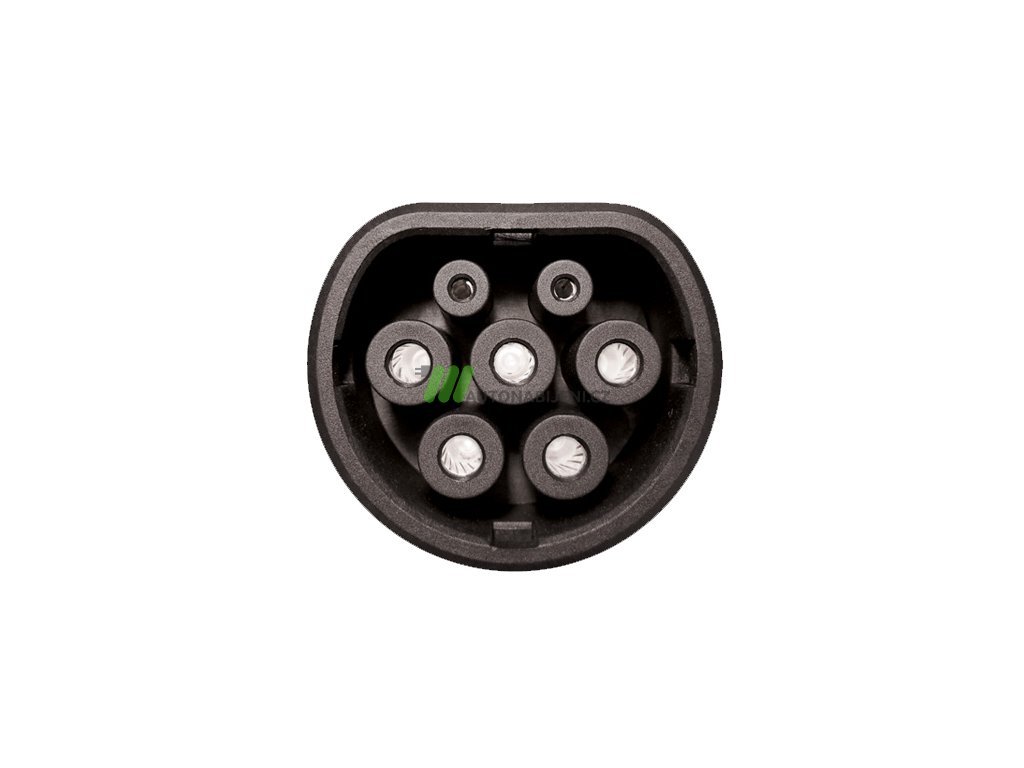

Connector - Car: Type 2 | female
Connector - Station: Type 2 | male
Used: Indoor / Outdoor
