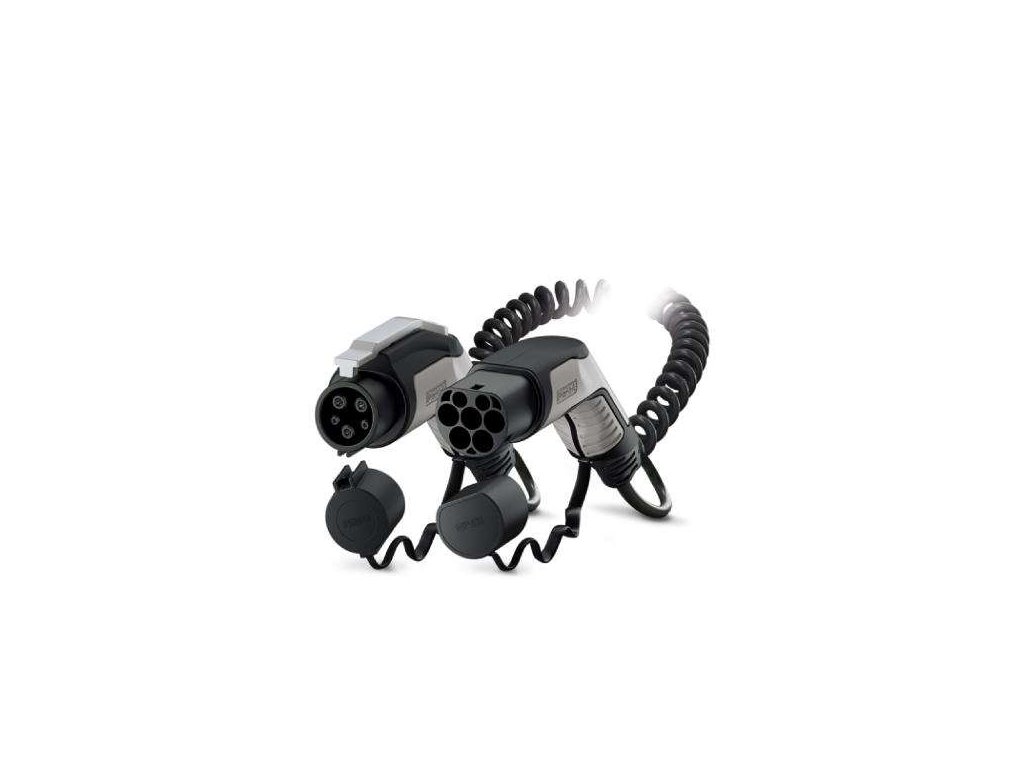

Premium coiled charging cable | Type 1 | max. 5 kW

Code: 1628020
200 € 242 € incl. VAT
Not available

AC charging cable, Mobile AC charging cable with Vehicle Connector and Infrastructure Plug, with locking option for U-lock, with protective caps, C-Line black / gray, Type 1, Type 2, IEC 62196-2, SAE J1772, 20 A / 250 V (AC), design line C-Line, cable: 4 m, black, spiraled, mating face: black, handle area: gray


Detailed information

Product detailed description

Mobile AC charging cable with Vehicle Connector and Infrastructure Plug for charging electric vehicles (EV) with alternating current (AC), via type 1 Vehicle Inlets, compatible with type 2 Infrastructure Socket Outlets at charging stations for E-Mobility (EVSE)


Your advantages

  • Consistent design of all Phoenix Contact Vehicle Connectors and Infrastructure Plugs
  • Silver-plated surface of the power and signal contacts
  • Certified in accordance with IATF 16949:2016 and ISO 9001:2015
  • Convenient handling, thanks to the ergonomic handle and additional, rubber grip components
  • Tested in accordance with selected tests of automotive standards LV124, LV214, LV215-2
  • Reliable function of the locking lever with additional seal
  • Optional locking option with a U-lock
  • Consistent longitudinal water tightness prevents water ingress in the cable

Additional parameters

Category: Type 1 | 1 phase | max. 16A - 3,7 kW
Weight: 3 kg
Mode: 3
Power supply: 1 phase
Rated current: 20 A
Working voltage: 230 V
Rated power: 5 kW
Degree of protection: IP54
Cable length: 4 meters
Operating temperature: - 30°C ~ + 50°C
Cable: 4x2,50mm2
Connector - vehicle: Type 1
Connector - Station: Type 2 | male
