Voltage monitoring device

Code: 6024
119 € 143,99 € incl. VAT
1 week delivery
Delivery to:
8.10.2021

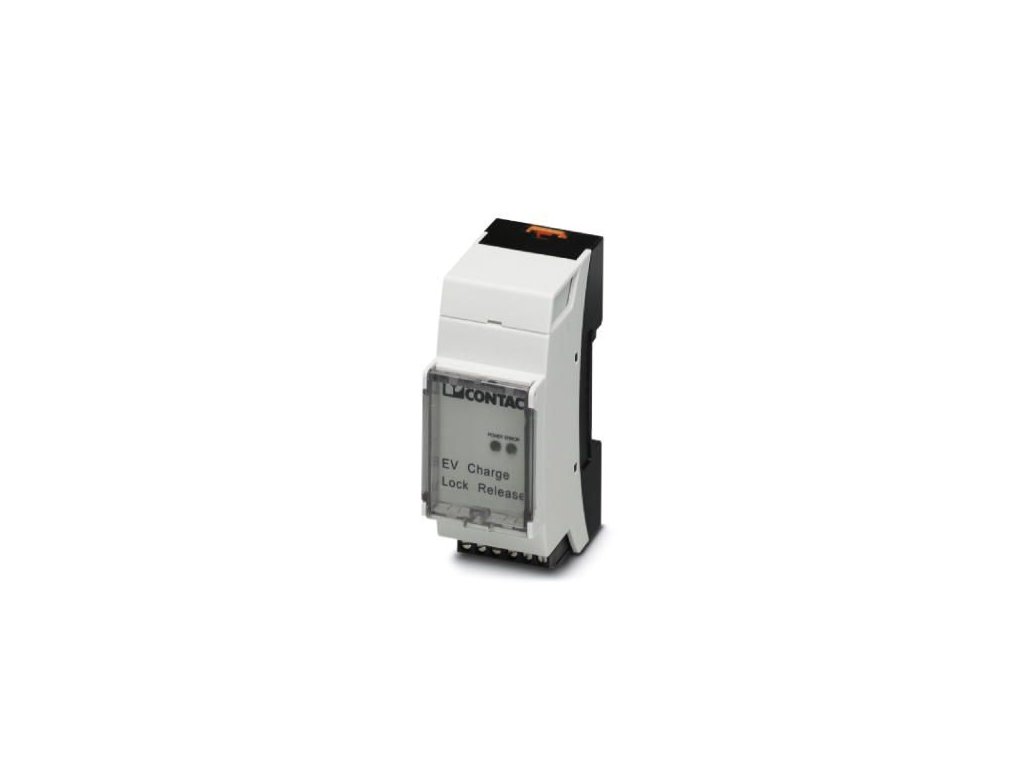

The EV Charge Lock Release monitors the 12 V operating voltage of the electrically driven plug locking actuator, routes locking and unlocking signals, and sends an unlocking pulse to the actuator when the operating voltage fails.

Detailed information

Product detailed description

Dimensions

  • Width: 35.6 mm
  • Depth: 61.00 mm

Ambient conditions

  • Ambient temperature (operation): -25 °C ... 60 °C
  • Ambient temperature (storage/transport): -25 °C ... 60 °C
  • Degree of protection: IP20

Inputs

  • Number of digital inputs: 1
  • Frequency range: 50 Hz ... 60 Hz
  • Nominal power consumption: < 0.5 W (No-load)
  • Nominal current INapprox. 5 mA
  • Nominal input voltage UN: 12 V
  • Input voltage range U1: -3 V ... 3 V (Off)
  • Input voltage range U2: -30 V ... -10 V (Locking ON)
  • Input voltage range U3: 10 V ... 30 V (Unlocking ON)

Switching outputs

  • Control of locking actuator: Relay output OUT+/-
  • Minimum switching capacity: 46 VA
  • Maximum switching voltage: approx. 11.5 V (Operating/capacitor voltage minus the diode voltage of ~ 0.5 V)
  • Max. switching current: 4 A
  • Current carrying capacity: ≤ 4 A

Connection data

  • Connection method: Screw connection
  • Conductor cross section flexible: 0.2 mm² ... 2.5 mm²
  • Conductor cross section solid: 0.2 mm² ... 4 mm²
  • Conductor cross section AWG: 24 ... 12

Device supply

  • Supply voltage: 12 V DC ±5 %
  • Supply voltage range: 12 V DC ±5 %
  • Max. current consumption: 4 mA (in idle state)
  • Current carrying capacity: ≤ 4 A

Mounting

  • Mounting position: any

Environmental Product Compliance

  • REACh SVHC: Lead 7439-92-1
  • China RoHS: Environmentally Friendly Use Period = 50 years
