Premium coiled charging cable | Type 2 | max. 8kW
Code: 1627133Product detailed description
Mobile AC charging cable with Vehicle Connector and Infrastructure plug for charging electric vehicles (EV) with alternating current (AC), via type 2 Vehicle Inlets, compatible with type 2 Infrastructure Socket Outlets at charging stations for E-Mobility (EVSE)
EV-T2G3PC-1AC32A-4,0M6,0EHBK01
Your advantages
- Consistent design of all Phoenix Contact Vehicle Connectors and Infrastructure Plugs
- Silver-plated surface of the power and signal contacts
- Certified in accordance with IATF 16949:2016 and ISO 9001:2015
- Material data available in the IMDS (International Material Data System of the automotive industry)
- Convenient handling, thanks to the ergonomic handle and additional, rubber grip components
- Tested in accordance with selected tests of automotive standards LV124, LV214, LV215-2
- Tested in accordance with EV Ready 37 requirements
- Consistent longitudinal water tightness prevents water ingress in the cable
Additional parameters
| Category: | Charging cables |
|---|---|
| Weight: | 4 kg |
| Charging mode: | Mode 3 |
| Power supply: | 1 phase |
| Rated current: | 32 A |
| Operating voltage: | 250 V AC |
| Rated power: | 8 kW |
| Degree of protection: | IP44 |
| Cable length: | 4 meters |
| Operating temperature: | - 30°C ~ + 50°C |
| Cable: | 3 x 6.0 mm² + 1 x 0.5 mm² |

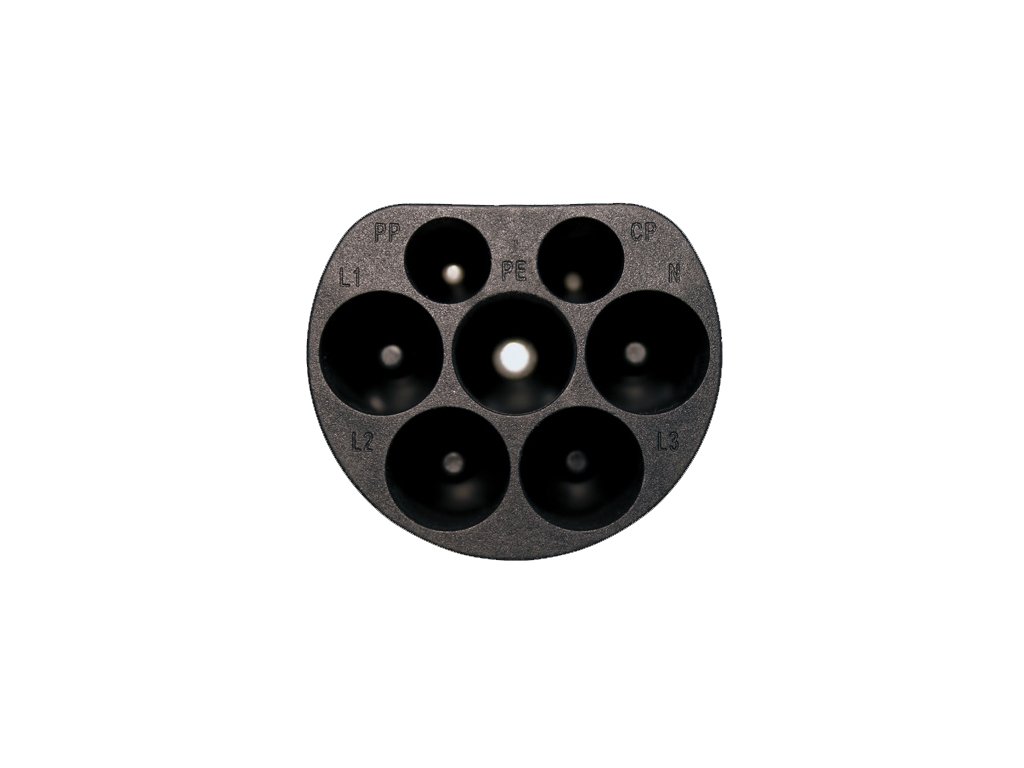

| Connector - Station: | Type 2 male |

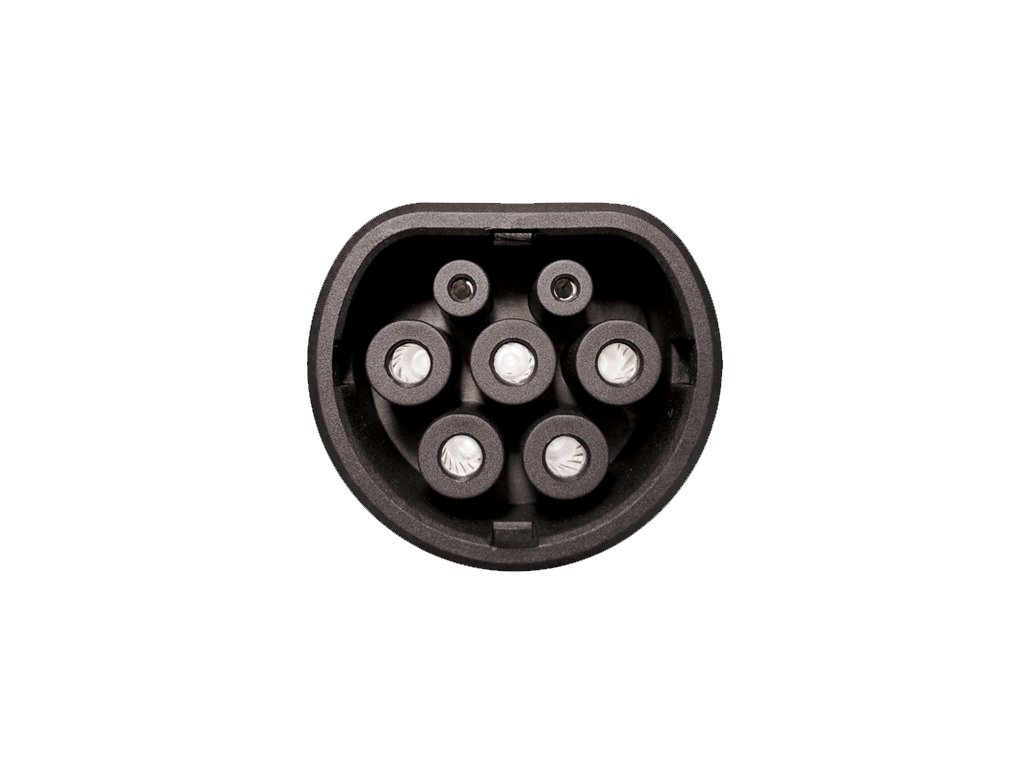

| Connector - Car: | Type 2 female |
| Used: | Indoor / Outdoor |
