JUICE BOOSTER 2
Code: EL-JB2E2 EL-JB2G2 Choose variantRelated products
Product detailed description

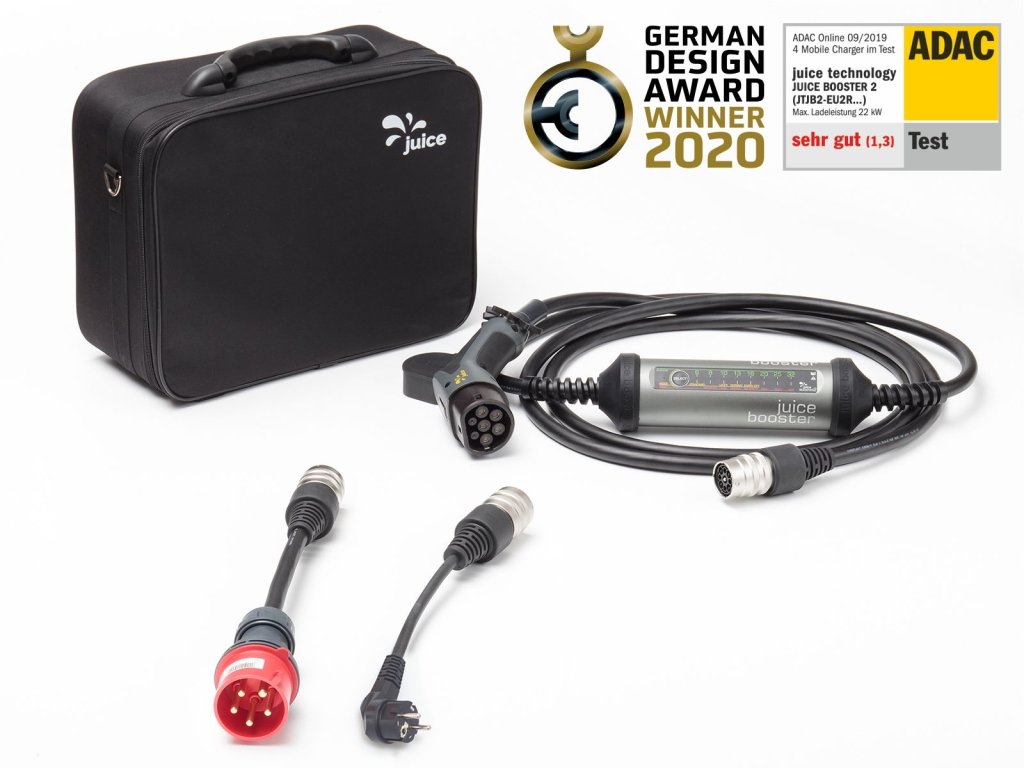

Small, light and completely flexible: the JUICE BOOSTER 2 with German Traveller package makes any power outlet a charging point for your electric car!
The ingenious mobile charging station from Juice Technology is the most flexible, load-friendly, complete package for electric car drivers. It is simple to operate and built from extremely robust components, making the JUICE BOOSTER 2 one of the leading charging stations in its class.
Integrated residual current protection
The JUICE BOOSTER 2 is fitted as standard with a circuit breaker for AC and DC fault currents (RCD DC 6mA, AC/DC 30 mA with protective conductor test). The JUICE BOOSTER 2 thus complies 100% with the currently applicable IEC62752 standard.

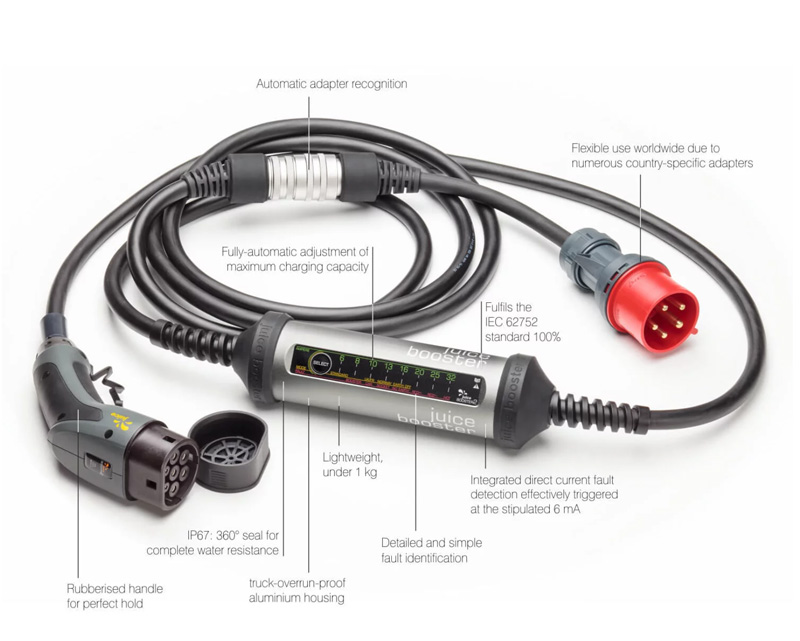

Automatic adapter recognition
This function makes the charging process particularly easy and uncomplicated. The mobile charging station independently detects which of the included adapters is connected, and automatically applies the correct charging power. This ensures that the socket is not overloaded. Attention: Especially for older installations we recommend to have the wiring and fuse protection of sockets checked by a specialist in advance.
Weather-resistant, robust materials
High-quality materials mean the JUICE BOOSTER 2 and all of its components are shockproof, protected against rain and snow, and even able to withstand being run over. Even under a three-tonne load, the device’s electronics remain well protected.
The perfect travel companion
Fast, simple charging
In designing the JUICE BOOSTER 2, great importance has been placed on ensuring the charging process is as fast as possible, in line with the “Plug & Charge” idea. The user-friendly yet robust aluminium connector plug, and automatic adapter recognition, reduce to a minimum the effort required at the start and end of the charging process. And with charging power up to 22 kW on offer, your electric car will be fully charged in a particularly short time (depending on the model you own).
Charge safely from a domestic socket
Long-term charging from a domestic socket runs the risk of a cable fire (as a result of faulty wiring or poor installation of the contacts). The JUICE adapter with domestic socket is equipped with two special temperature sensors that protect the cable from overheating. As soon as overheating is detected, the JUICE BOOSTER 2 interrupts the charging process, preventing damage.
Additional parameters
Category: | Type 2 | 3 phase | max. 32A - 22 kW |
---|---|
Charging mode: | Mode 2 |
Rated current: | 6A / 8A / 10A / 13A / 16A / 20A / 25A / 32A |
Operating voltage: | 230 V 6–32 1 phase AC / 400 V 6–32 A 3 phase AC |
Rated power: | 1,4 - 22kW |
Current protection: | DC 6mA, AC/DC 30mA |
Cable length: | Supply cable 1.4m, Type 2 cable 3.1m |
Operating temperature: | - 25°C ~ + 45°C |
Certificate: | IEC 62752, 62196, 61851 Mode 2, 61851 Mode 3 (with type 2/type 3c adapter plug), EMC, RoHS |
Dimensions: | 70 x 225 mm |
