Spark Line 16 | Typ 2 | max. 11kW

Code: 5811/5 M 5811/7-5 Choose variant
+ free gift
Brand: inChaNet
413 € 446 € from 413 € 499,73 € incl. VAT 539,66 € incl. VAT from 499,73 € incl. VAT
In stock 1 week delivery Choose variant
Cable length
Chosen variant is not available. Reset selected parameters.
Adapter

Very universal smart cable with control electronics for charging electric cars from CEE 16A (400V) sockets with a maximum power of up to 11kW (3x16A). Charge faster than with a cable from the car manufacturer!

Detailed information

Product detailed description

The CEE 16A / 5P industrial socket is the most convenient way to charge your electric vehicle, wherever you are. Most electric cars on the market support 1x16A or 3x16A charging, but are not supplied with the necessary accessories. We therefore offer our own solution, which offers the following benefits:

  • Top-class safety and user-friendly
  • Switching elements are dimensioned for more than 150% of the rated continuous load.
  • The control electronic performs self-diagnostics with each plug in

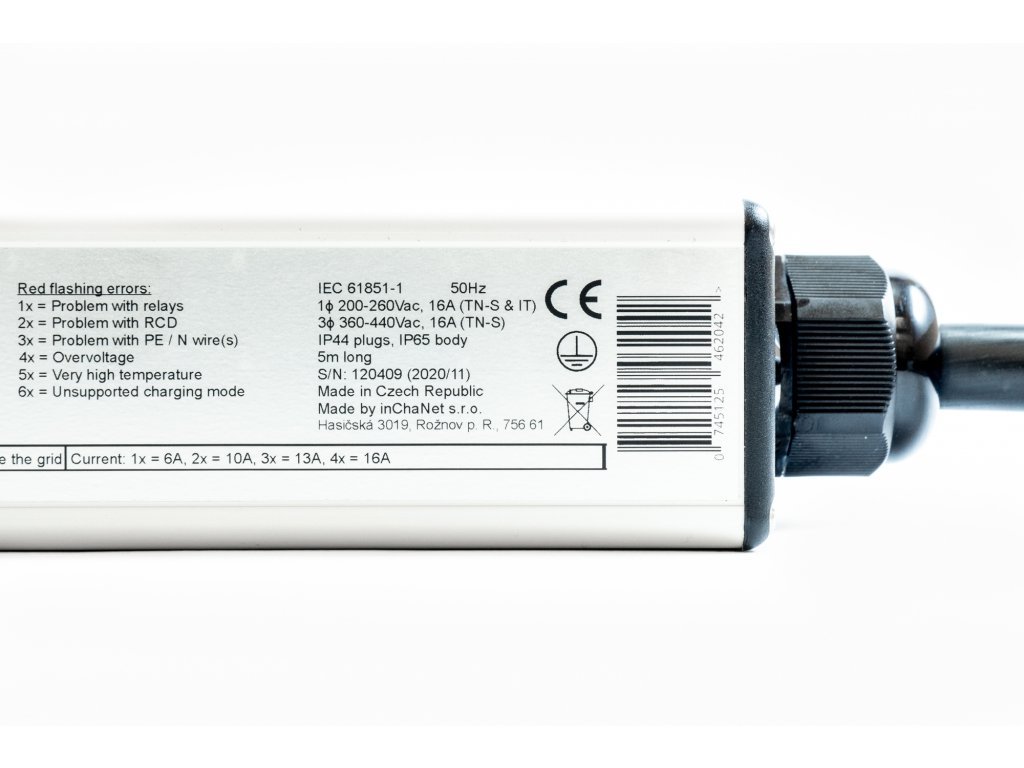

  • Indicates problems (after plug in and during charging) with the appropriate error code:
    • Rising temperatures or overheating in the device or CEE socket
    • Switching elements fused by heat or defective transistor switches
    • Overvoltage or undervoltage detection
    • Check of PE and N lines
    • Leakage current detection – Vehicle disconnection on leak detection (30mA AC, 6mA DC)
    • Unsupported charging mode
  • Setting function for maximum charging current – advantageous for cars that cannot do this on their own (setting is done simply by a button with a signaling LED diode)
  • Compatibility of the new version on TN-S (most of Europe) and IT (Norway, Italy, Ukraine) networks

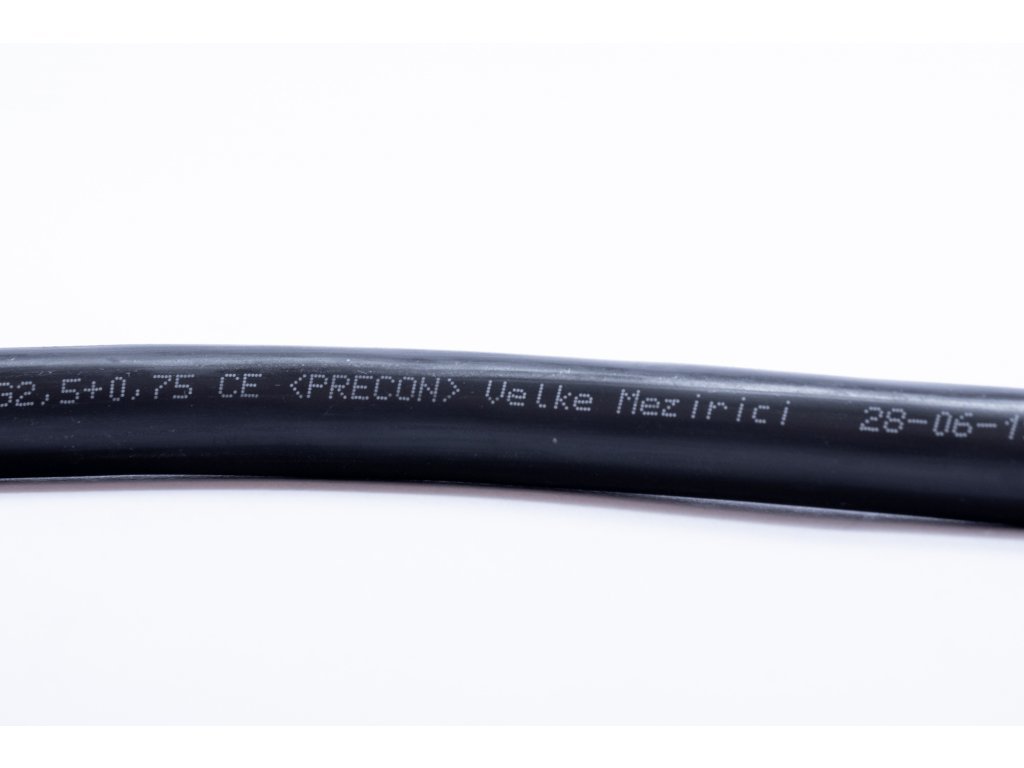

  • Use of high-quality correctly dimensioned conductor, TÜV certification

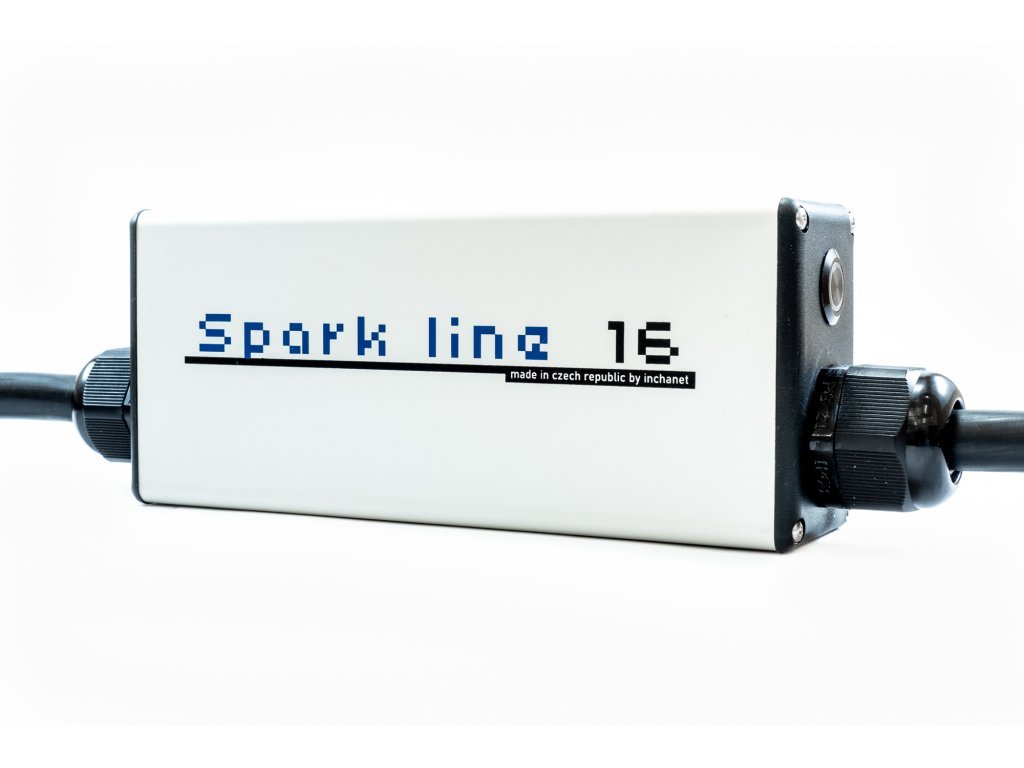

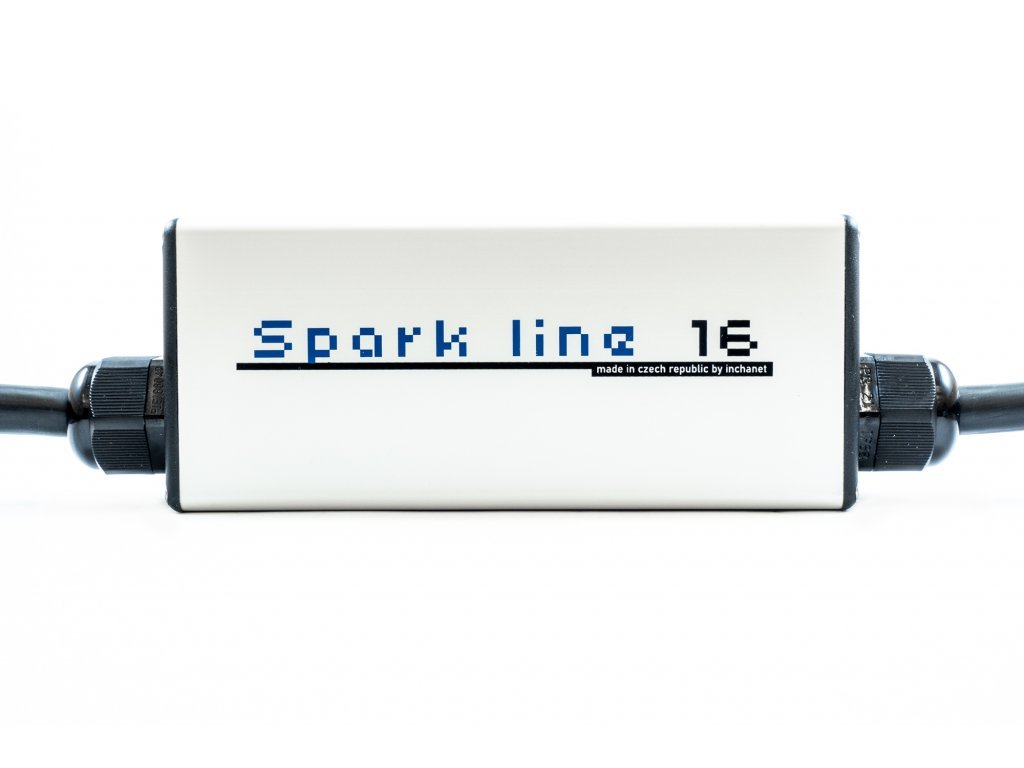

  • The solid aluminum housing of the electronics with IP65 protection is able to survive rain, fall or being run over by a car

However, none of these protections is intended to replace a poorly connected power supply, and the user is still required to use only sockets that meet all safety requirements and standards. Protections mentioned above serve as an additional protective layer.

The cable is suitable for all electric vehicles (EV) available on the European market using European-American standard IEC 62196-2 type 2 (so-called Mennekes). Including following cars, for example, the Tesla Model S / X / 3, Nissan Leaf, BMW i3, VW e-up !, VW e-Golf, Hyundai Ioniq, Kia Soul EV, Mercedes B-class ED, Jaguar I-Pace and many others…

______________________________________________

Rated current: max 16A (11kW)
Adjustable current: 6A / 10A / 13A / 16A
Used phases: 1, 2 or 3 depending on connected car
Length: 5m
Allowed ambient temperature: -30°C to +50°C
Residual current device: A-EV (30mA AC, 6mA DC)

4 Year Warranty

Additional parameters

Category: Type 2 | 3 phase | max. 16A - 11kW
Power supply: 1 / 2 / 3 phase
Operating voltage: 230 - 400 V
Rated current: 6A / 10A / 13A / 16A
Rated power: max. 11kW
Current protection: RCD A-EV (30mA AC, 6mA DC)
Degree of protection: IP65
Cable length: 5 meters or on request
Operating temperature: - 30°C ~ + 50°C

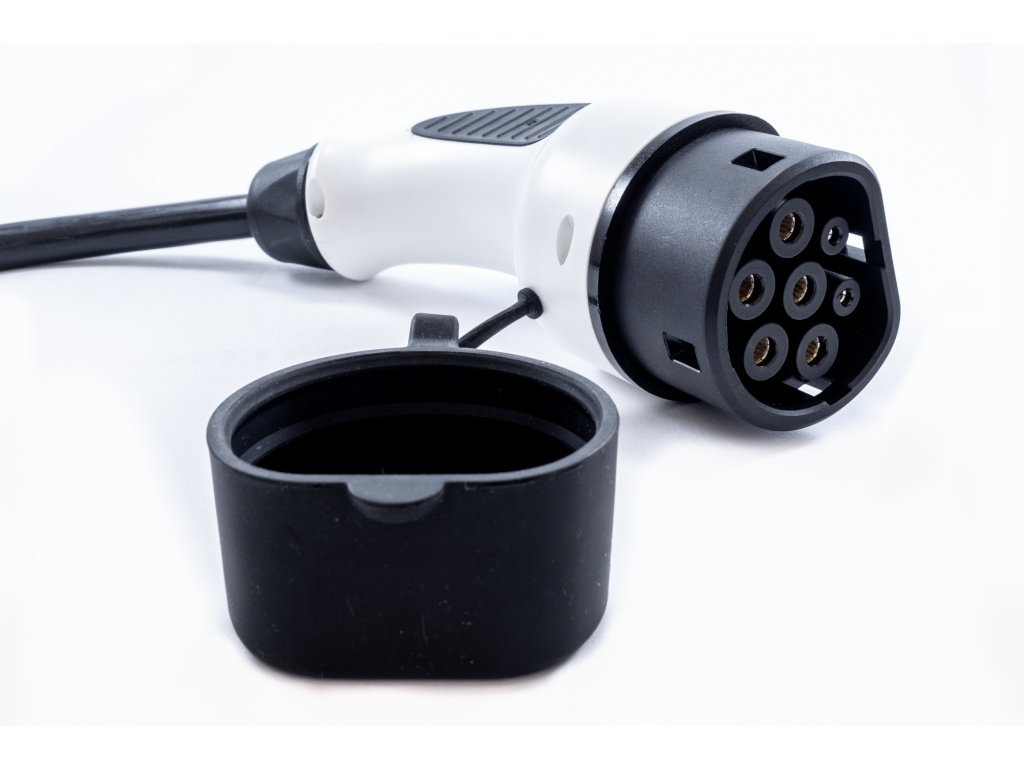

Connector - Car: Type 2 "Mennekes"

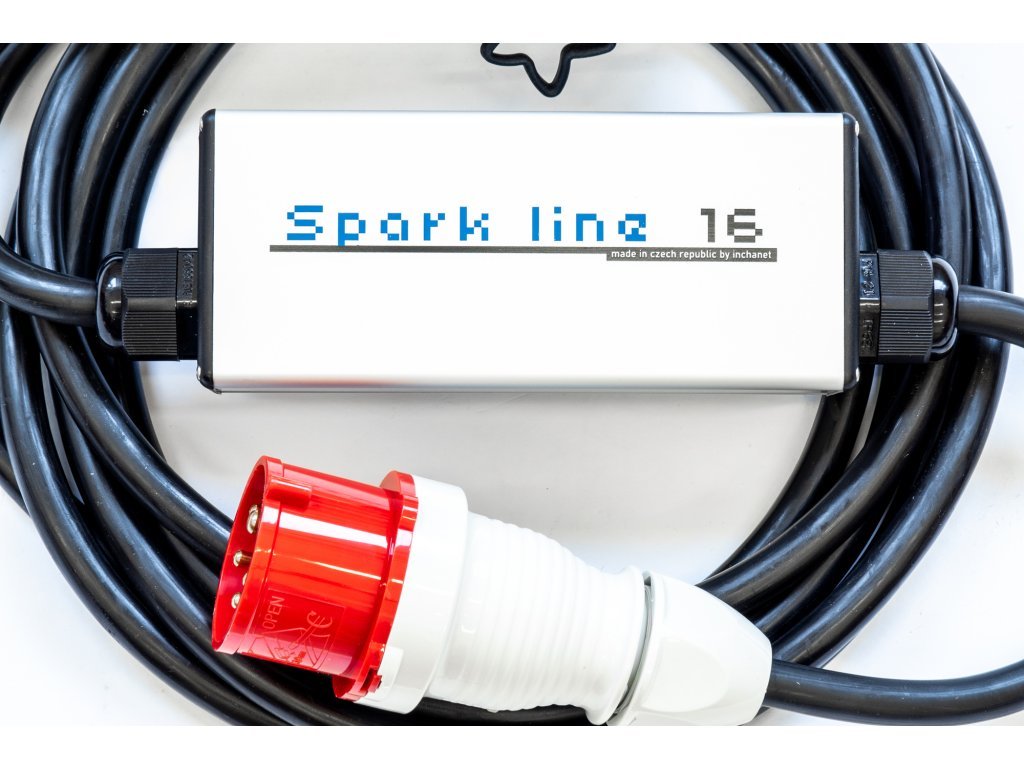

Connector - Station: CEE16A
Used: Indoor / Outdoor
