    Home / Charging cables / Type 2 | 3 phase | max. 16A - 11 kW / EV coiled charging cable | Type 2 | max. 11 kW

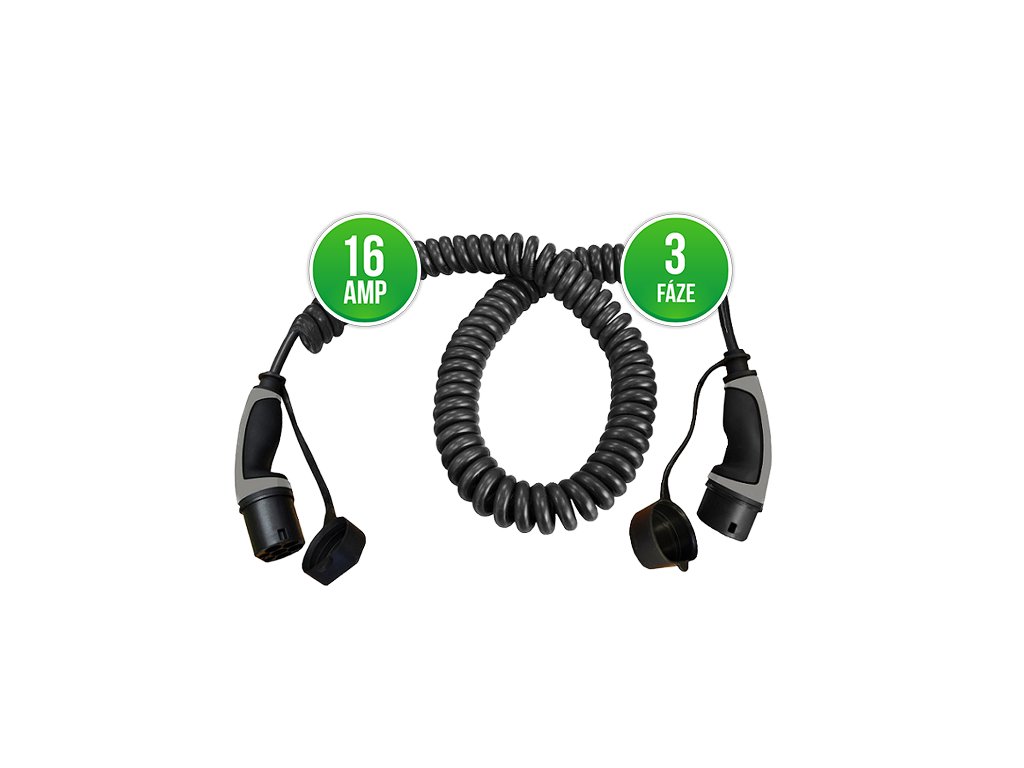

    EV coiled charging cable | Type 2 | max. 11 kW

    Code: 30780S
    Not rated
    Vinutý nabíjecí kabel Typ 2 | Mennekes | 3f/16A max. 11 kW
    197 € 238,37 € incl. VAT
    In stock

    Tested and certified product. In accordance with current IEC 62196 standards.

    • Connection Mode 3
    • High protection, fast charging
    • High strength and cable resistance
    • IP54 - waterproof cable for indoor and outdoor charging
    • CE, TUV, UL certification
    • Compatible with all cars with tip Type 2
    • The highest quality and lightweight second generation cable.

    Product detailed description

    No product's description available

    Additional parameters

    Category: Type 2 | 3 phase | max. 16A - 11 kW
    Weight: 5 kg
    Cable length: 4 meters
    Cable type: Coiled
    Charging mode: Mode 3
    Power supply: 3 phase
    Rated current: 16 A
    Operating voltage: 400 V
    Rated power: 11 kW
    Degree of protection: IP54
    Operating temperature: - 40°C ~ + 75°C
    Cable: 5x2,50mm² + 1x0,75mm²
    Connector - Station: Type 2 male
    Connector - Car: Type 2 female
    Used: Indoor / Outdoor
