Mobi Box | Type 2 | 16A max. 3,7 kW

Code: 31323 31323-10M Choose variant
416 € 443 € from 416 € 503,36 € incl. VAT 536,03 € incl. VAT from 503,36 € incl. VAT
2 weeks delivery 2 weeks delivery Choose variant
Cable length
Chosen variant is not available. Reset selected parameters.
Delivery to:
7.7.2022 7.7.2022 Choose variant

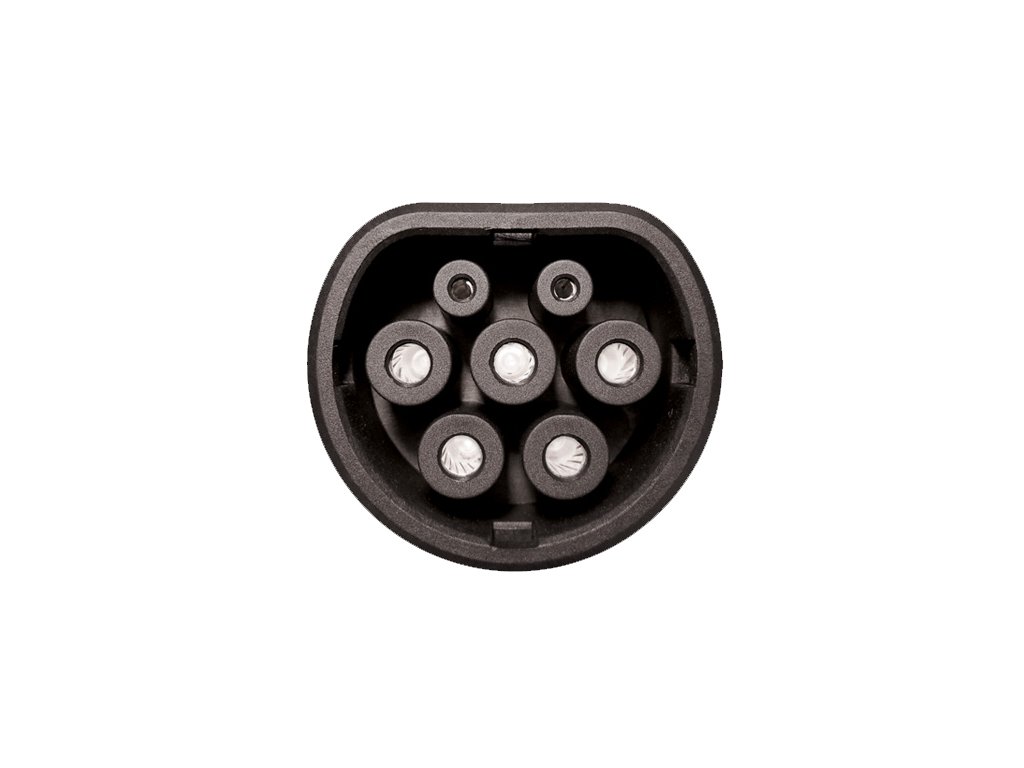

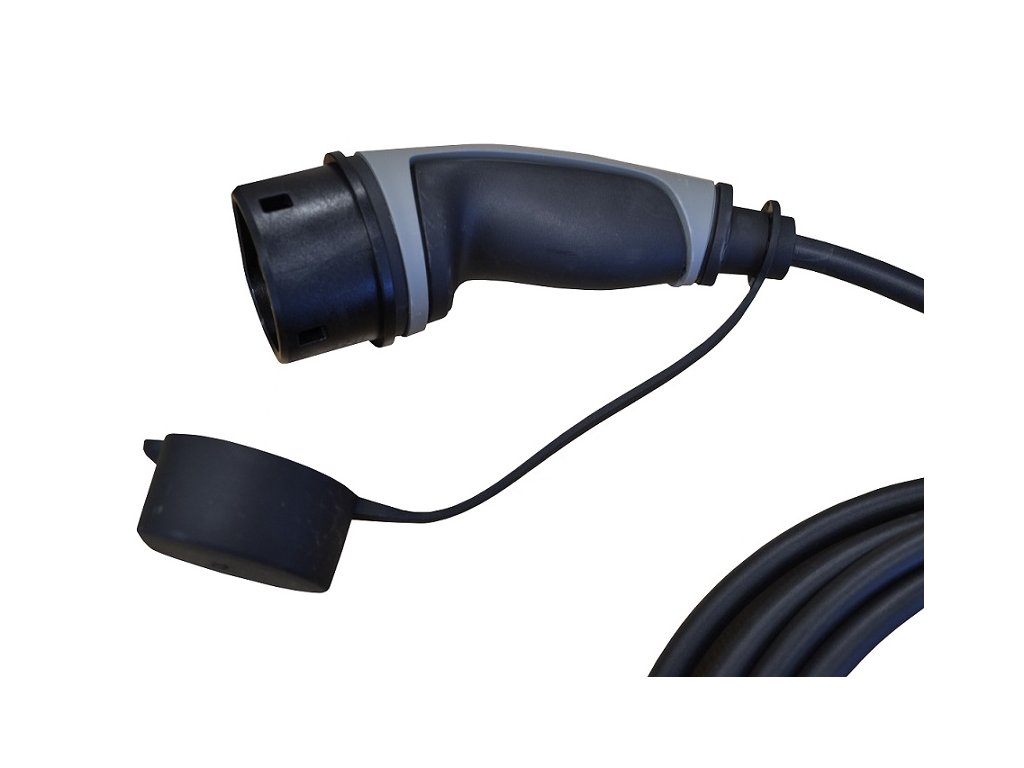

  • Car connector Type 2 Female with Dekra type approval
  • Housing thermoplastic material, waterproof (IP44)
  • Earth leakage protection AC 30mA, DC 6mA
  • Selectable charge current
  • Under and overvoltage protection
  • Overcurrent protection
  • Temperature protection in the housing
  • Earth wire protection
  • Automatic restart feature
  • High strength and cable resistance
  • CE, TUV, UL certification
  • Compatible with cars Type 2

Detailed information

Product detailed description

Ratio Electric portable EV chargers with Type 2 Female plug are available in two versions:

  • with Schuko wall plug with temperature protection (maximum charge power of 13A) - version with country specific wall plug is also possible
  • with CEE plug with a maximum charge power of 16A
  • Car connector Type 2 Female with Dekra type approval
  • Housing thermoplastic material, waterproof (IP44)
  • Earth leakage protection AC 30mA, DC 6mA
  • Selectable charge current
  • Under and overvoltage protection
  • Overcurrent protection
  • Temperature protection in the housing
  • Earth wire protection
  • Automatic restart feature
  • High strength and cable resistance
  • CE, TUV, UL certification
  • Compatible with cars Type 2

Additional parameters

Category: Portable chargers
Charging mode: 2
Rated current: 16 A
Power supply: 1 phase
Operating voltage: 230V
Rated power: 3,7 kW
RCD: AC 30mA, DC 6mA
Degree of protection: IP67
Operating temperature: - 25°C ~ + 50°C
Cable: 3G2,50mm² + 3x0,50mm²
Connector - Car: Type 2 "Mennekes"
Connector - Station: CEE
Used: Indoor / Outdoor
