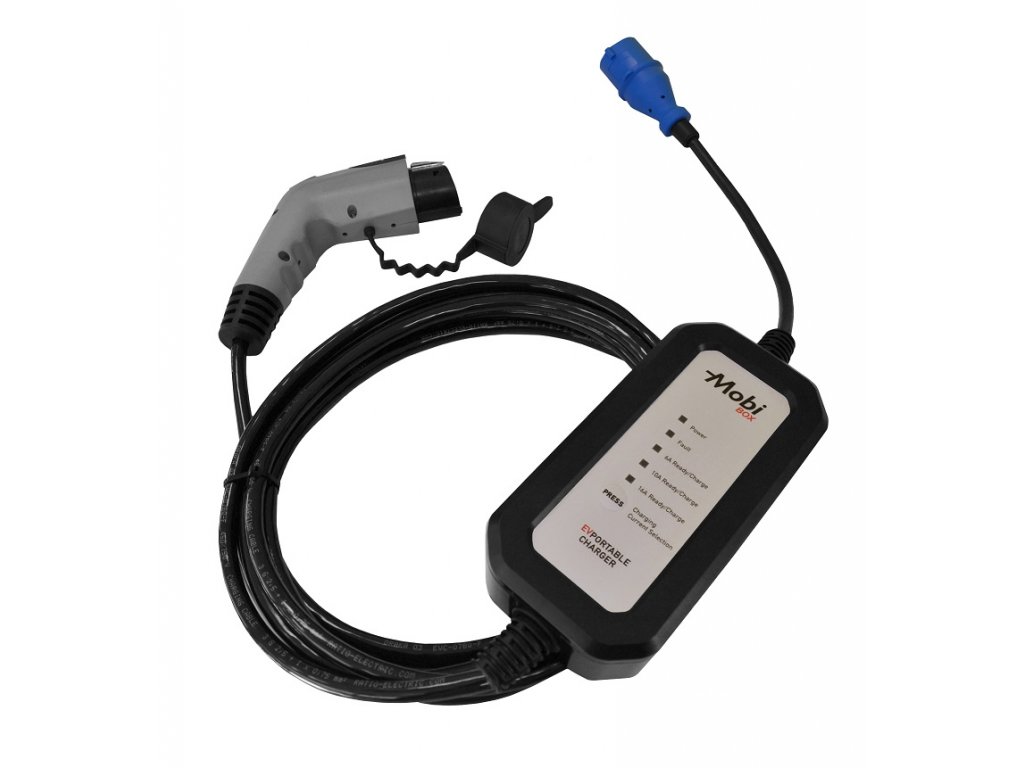

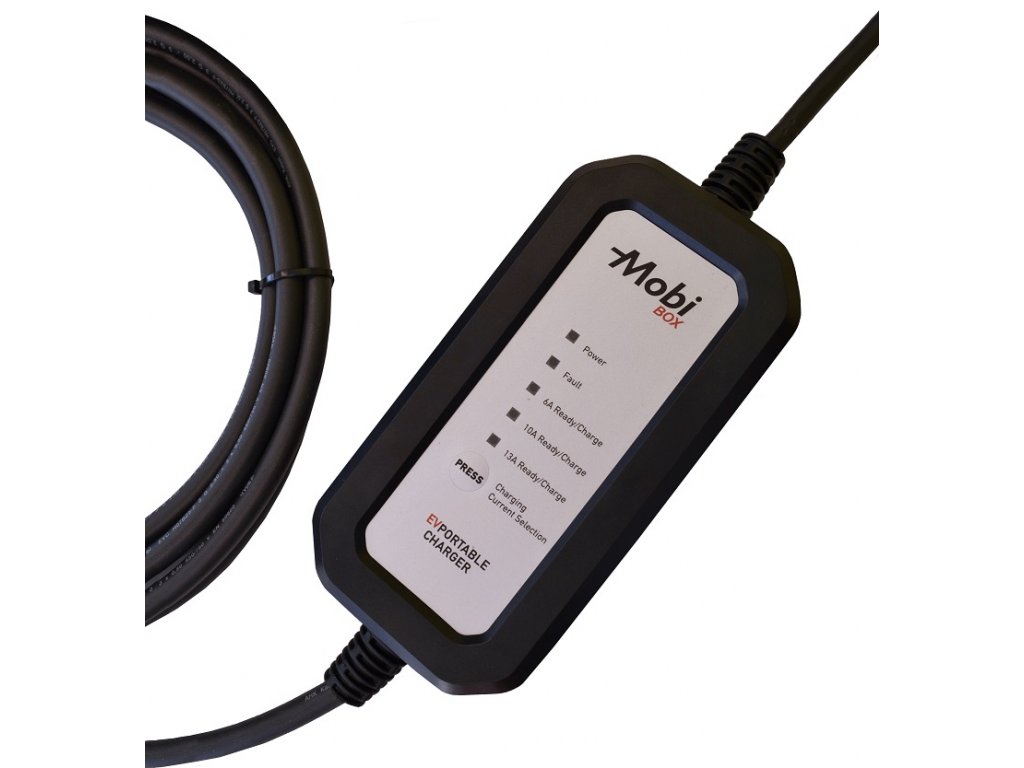

Mobi Box Type 1 | "Yazaki" | 6-16A max. 3,7 kW

Code: 31313 31313-10M Choose variant
416 € 443 € from 416 € 503,36 € incl. VAT 536,03 € incl. VAT from 503,36 € incl. VAT
2 weeks delivery 2 weeks delivery Choose variant
Cable length
Chosen variant is not available. Reset selected parameters.
Delivery to:
4.2.2022 4.2.2022 Choose variant

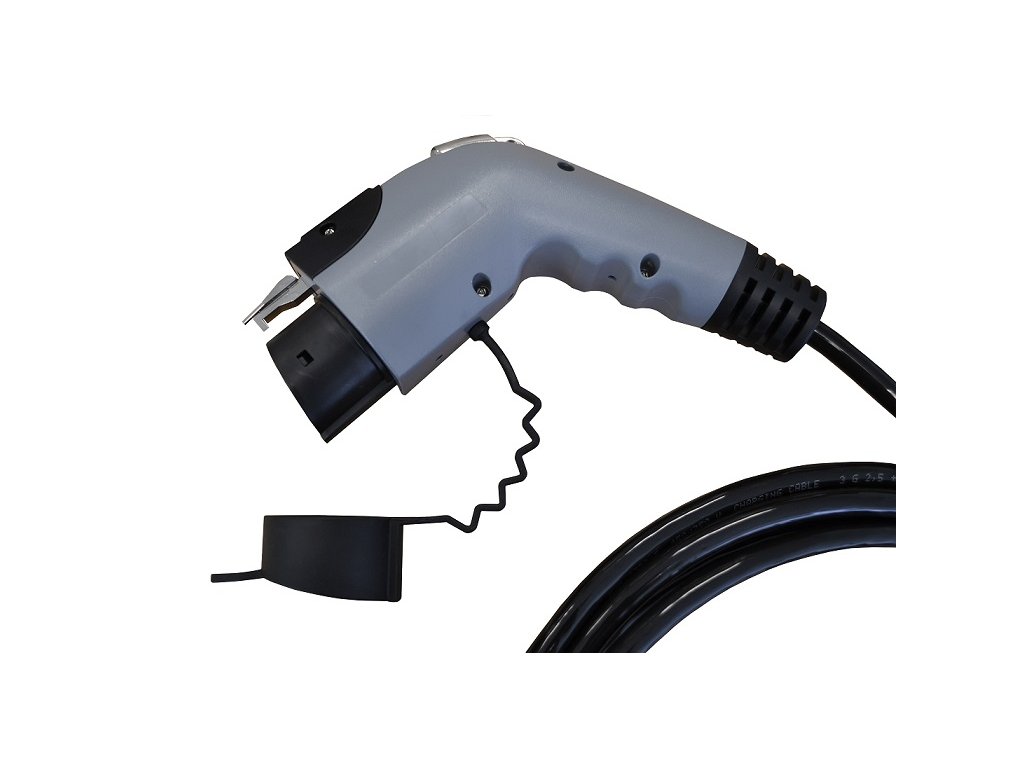

  • Car connector Type 1 with Dekra type approval
  • Housing thermoplastic material, waterproof (IP44)
  • Earth leakage protection AC 30mA, DC 6mA
  • Selectable charge current
  • Under and overvoltage protection
  • Overcurrent protection
  • Temperature protection in the housing
  • Earth wire protection
  • Automatic restart feature
  • High strength and cable resistance
  • CE, TUV, UL certification
  • Compatible with cars Type 1 / "Yazaki" / J1772

Detailed information

Product detailed description

  • Car connector Type 1 with Dekra type approval
  • Housing thermoplastic material, waterproof (IP44)
  • Earth leakage protection AC 30mA, DC 6mA
  • Selectable charge current
  • Under and overvoltage protection
  • Overcurrent protection
  • Temperature protection in the housing
  • Earth wire protection
  • Automatic restart feature
  • High strength and cable resistance
  • CE, TUV, UL certification
  • Compatible with cars Type 1 / "Yazaki" / J1772

Additional parameters

Category: Portable chargers
Degree of protection: IP44
Rated max. power: 3,7 kW
Station output: Type 1 cable
Charging mode: Mode 2
Rated current: 6 / 10 / 13 / 16A
Power supply: 1 phase
Operating voltage: 230V
Rated power: 3,7 kW
RCD: AC 30mA, DC 6mA
Degree of protection: IP44
Operating temperature: - 25°C ~ + 50°C
Cable: 3G2,50mm² + 3x0,50mm²

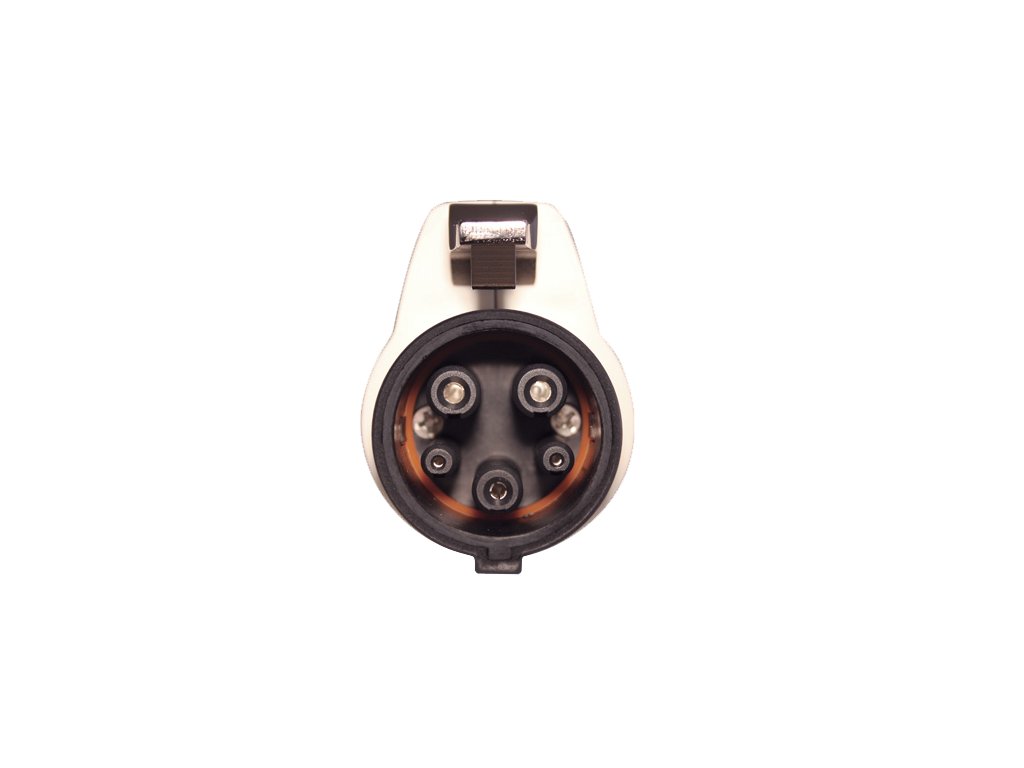

Connector - Car: Type 1 "Yazaki"
Connector - Station: CEE
Used: Indoor / Outdoor
