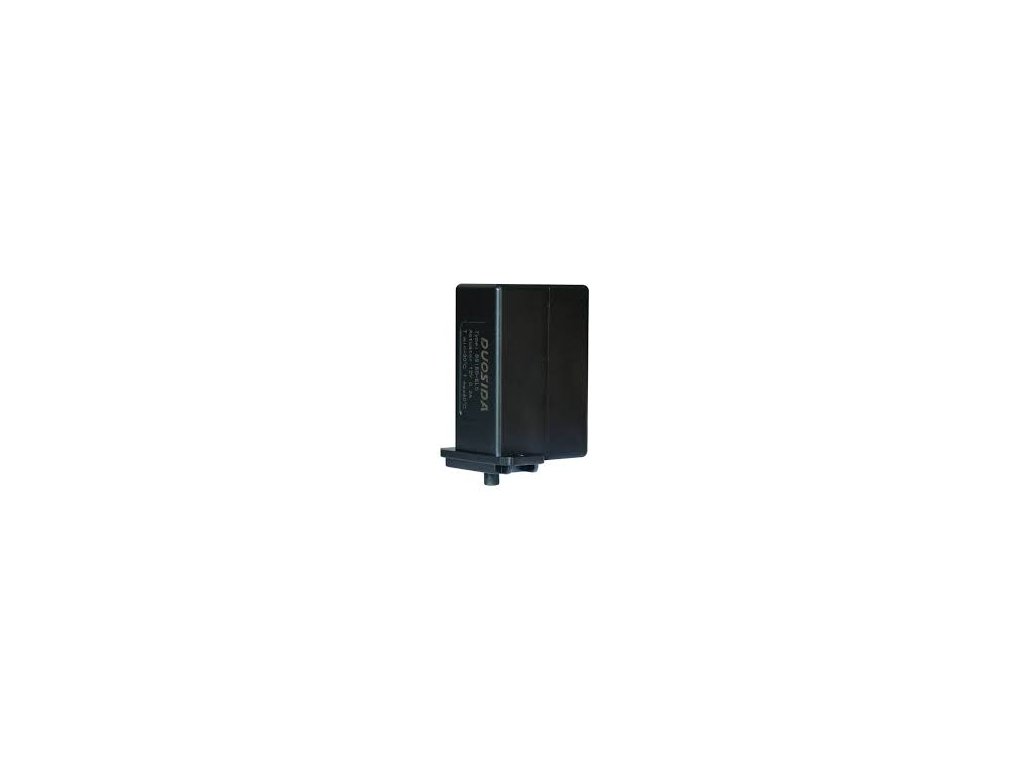

Locking actuator for sockets Type 2

Code: 6021
26 € 31,46 € incl. VAT
In stock

Locking drives are used to trap the charging cable in the socket. It prevents the cable from being pulled out while the electric car is charging.

Current: 0.2A
Voltage: 12V
Operating voltage range: 12/24V DC
Maximum voltage: 1000V
Duty cycle: 5% ED activation <200ms, max 3 seconds
Insulation Class: E (CLASS)
Operating temperature: -30°C ~ +50°C
Housing material: thermoplastic, flammability class UL94 HB
Mechanical life: duty cycle > 50000 times

Detailed information

Product detailed description

Locking drives are used to trap the charging cable in the socket. It prevents the cable from being pulled out while the electric car is charging.

Current: 0.2A
Voltage: 12V
Operating voltage range: 12/24V DC
Maximum voltage: 1000V
Duty cycle: 5% ED activation <200ms, max 3 seconds
Insulation Class: E (CLASS)
Operating temperature: -30°C ~ +50°C
Housing material: thermoplastic, flammability class UL94 HB
Mechanical life: duty cycle > 50000 times

Cable Specifications:

  • 3 x 0.25 mm2

In case of power failure and interruption of electric vehicle charging, the locking drive unlocks automatically.
