EV Adapter | Type 1 - Type 2 female

Code: 31202
235 € 284,35 € incl. VAT
1 week delivery
Delivery to:
9.6.2020

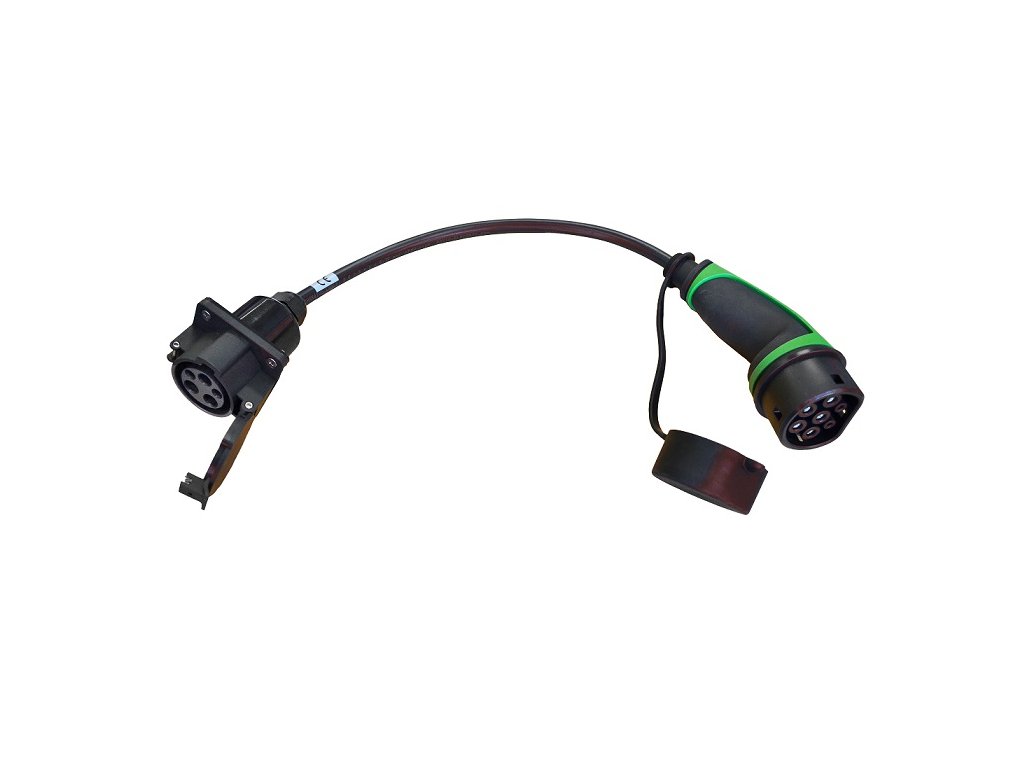

Mode 3 adapter to connect charging station with connector Type 1 | "Yazaki" with a car that has a Type 2 connector | "Mennekes". The cable has 6mm wires for charging with a maximum current of 32A / 7.4kW.

Detailed information

Product detailed description

Mode 3 adapter to connect charging station with connector Type 1 | "Yazaki" with a car that has a Type 2 connector | "Mennekes". The cable has 6mm wires for charging with a maximum current of 32A / 7.4kW.

Additional parameters

Category: Adapter
Warranty: 2 years
Weight: 2 kg
Input plug type: Type 1 / "Yazaki"
Output plug type: Mennekes samice
Phase: 1 phase
Rated max. current: 16 A
Voltage: 230 V
Rated power: 3,7 kW
Housing: IP54
Cable length: 0,5 meter
Working temperature: - 40°C ~ + 75°C
Cable: 3x2,50mm? + 1x0,75mm?
